Quadro Versa
First flight in H2, 2025
for satellites
weighing up to
1000 KG
Four-Point Separation System
Quadro Versa expands the capabilities of Exolaunch's microsatellite separation systems with a four-point offering tailored to satellites weighing up to 1000 kg and flying on SpaceX Rideshare plates. Versa has been designed for compatibility with the SpaceX four-point interfaces, and it is easily scalable to any size from 24”x24” up to 40”x40”. Larger satellites over 1000 kg and with larger footprints are also served by Versa, which offers unrivaled strength, stiffness and reliability for four-point satellites of any size.
Shock-Free Deployment
No pyrotechnics ensures your payload remains intact after deployment
Flight Heritage
Critical subsystems like lock mechanism and pusher arms have flight heritage across dozens of missions
Mechanically Synchronized
Only one signal is needed to precisely release all four points, preventing the need for costly and complex multiplexers
Low Tumbling
The patented CarboNIX pusher arm system has an average tip-off rate of 0.6°/s in all three axes
ITAR-Free
Quadro is not subject to export restrictions of any kind
Scalable Design
Synchronizing elements between the HDRMs are designed to easily scale in size to support any footprint
Fast Reset Time
Flight-proven, simple and robust magnetic locks are quick to reset
Made in Germany

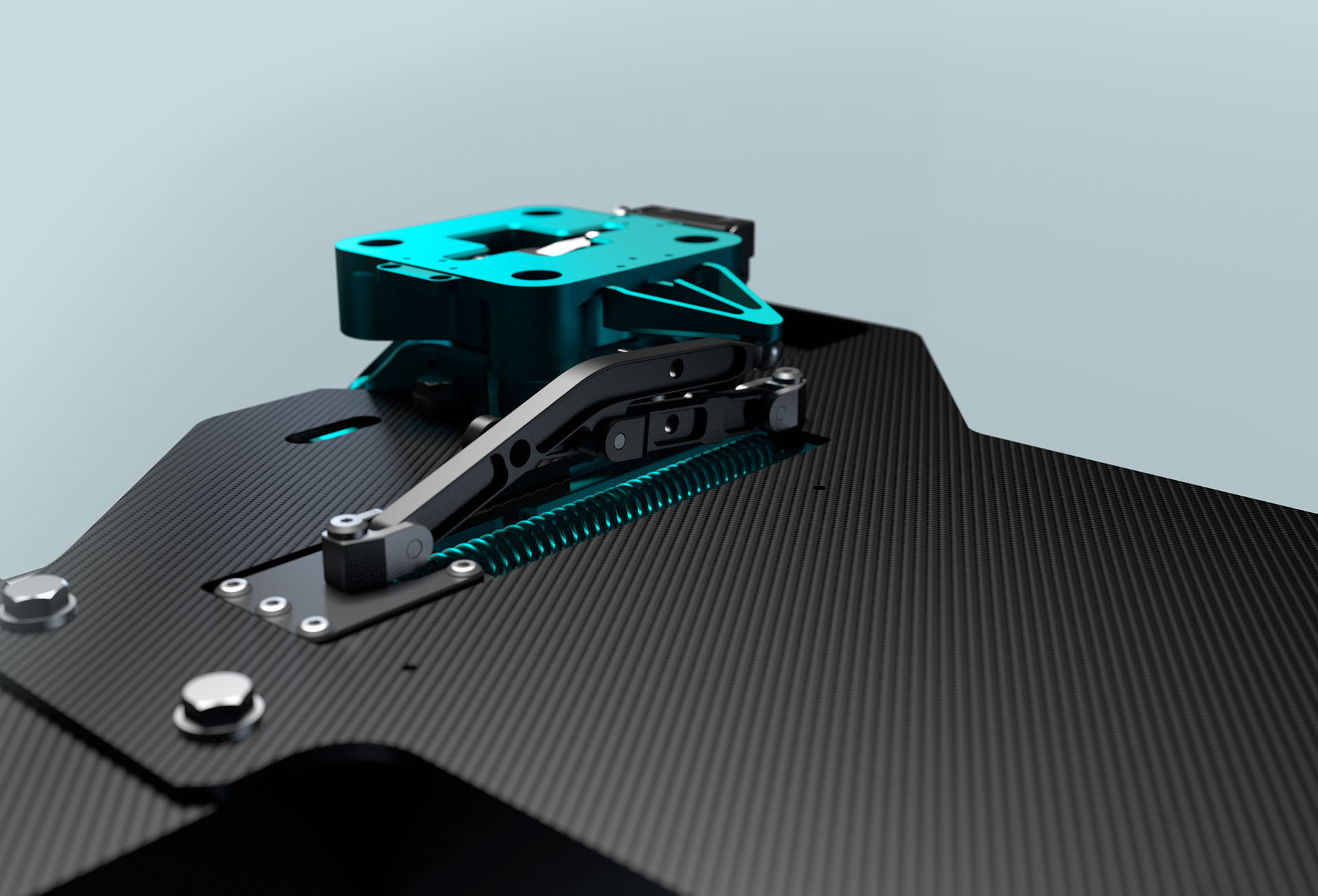

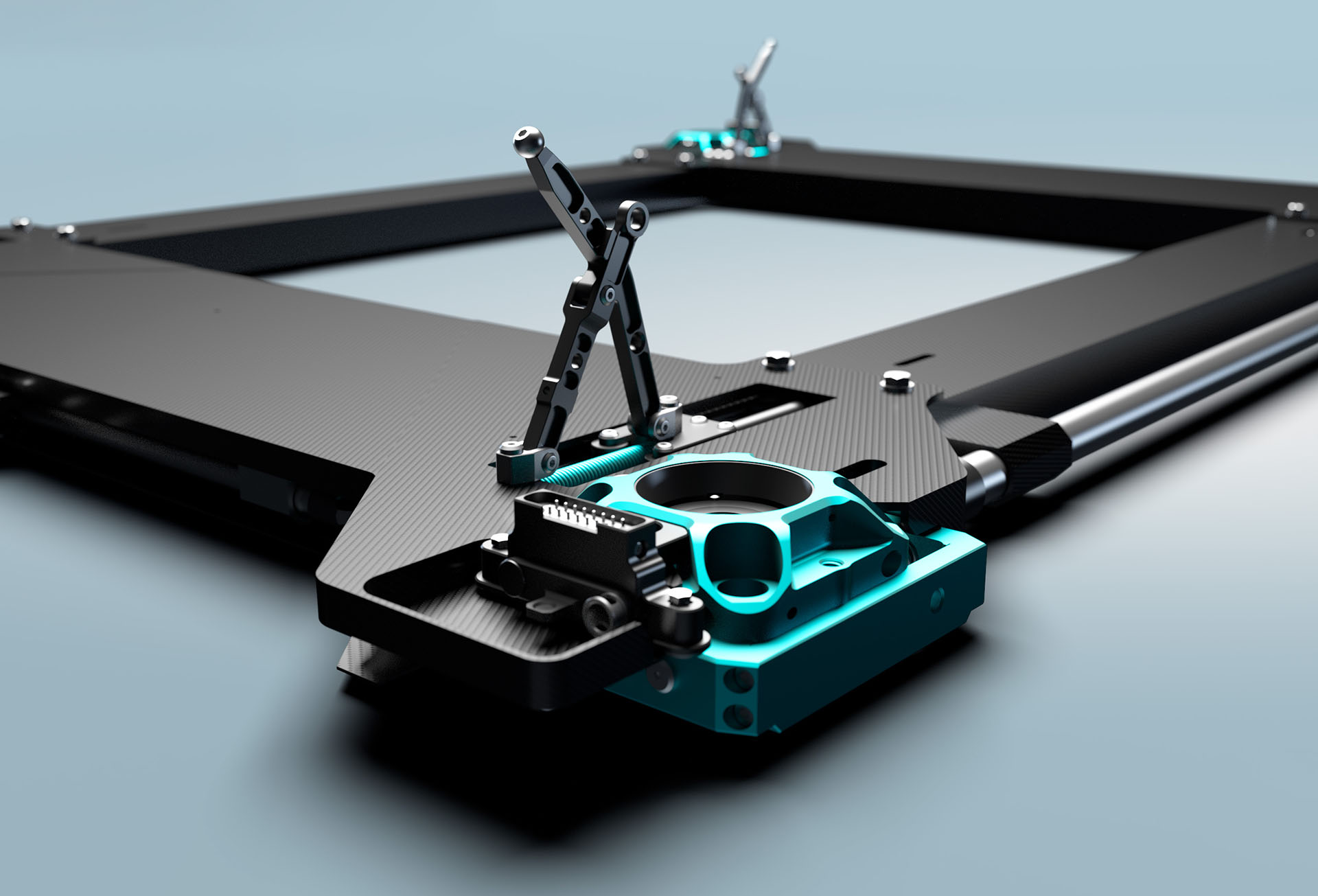

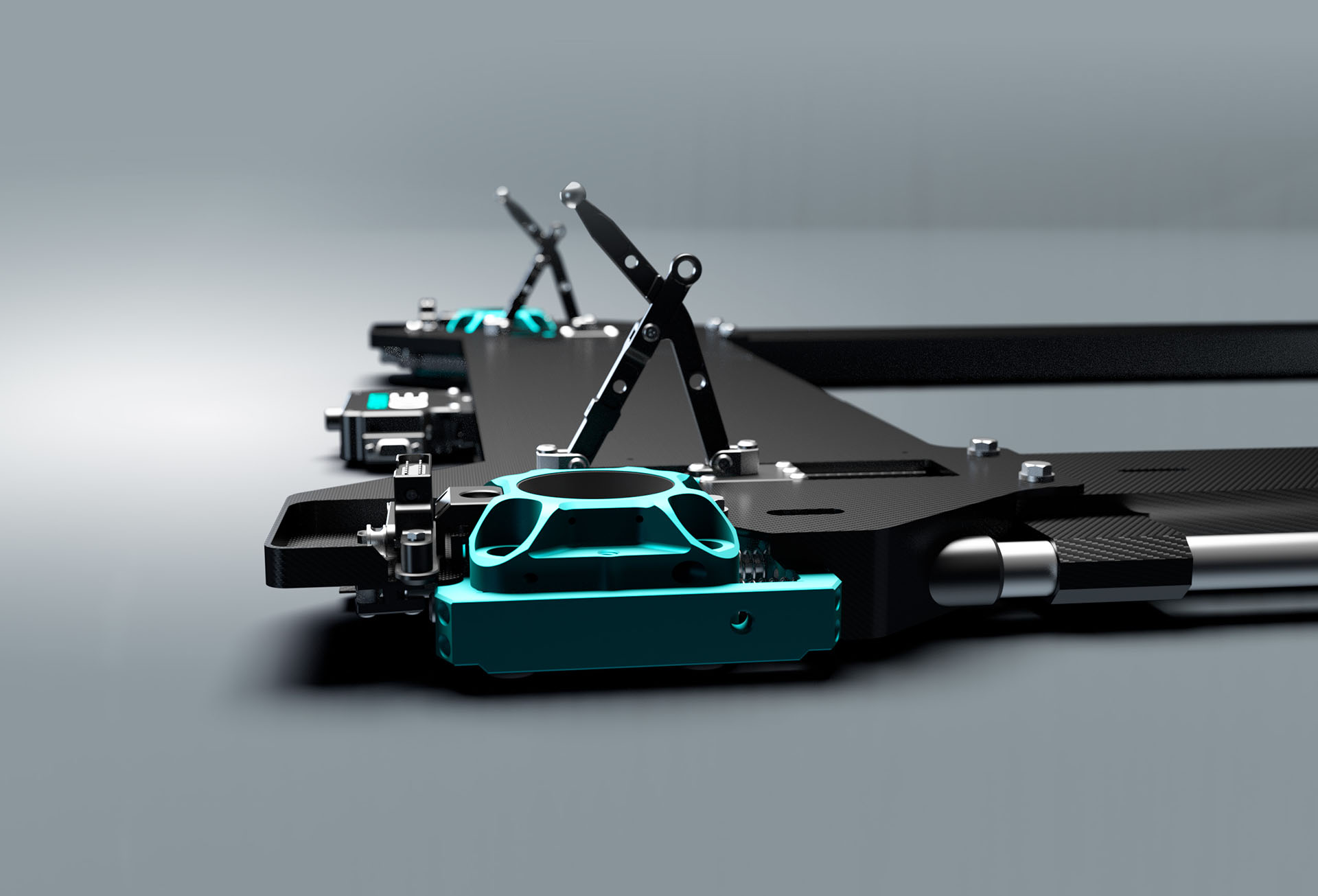

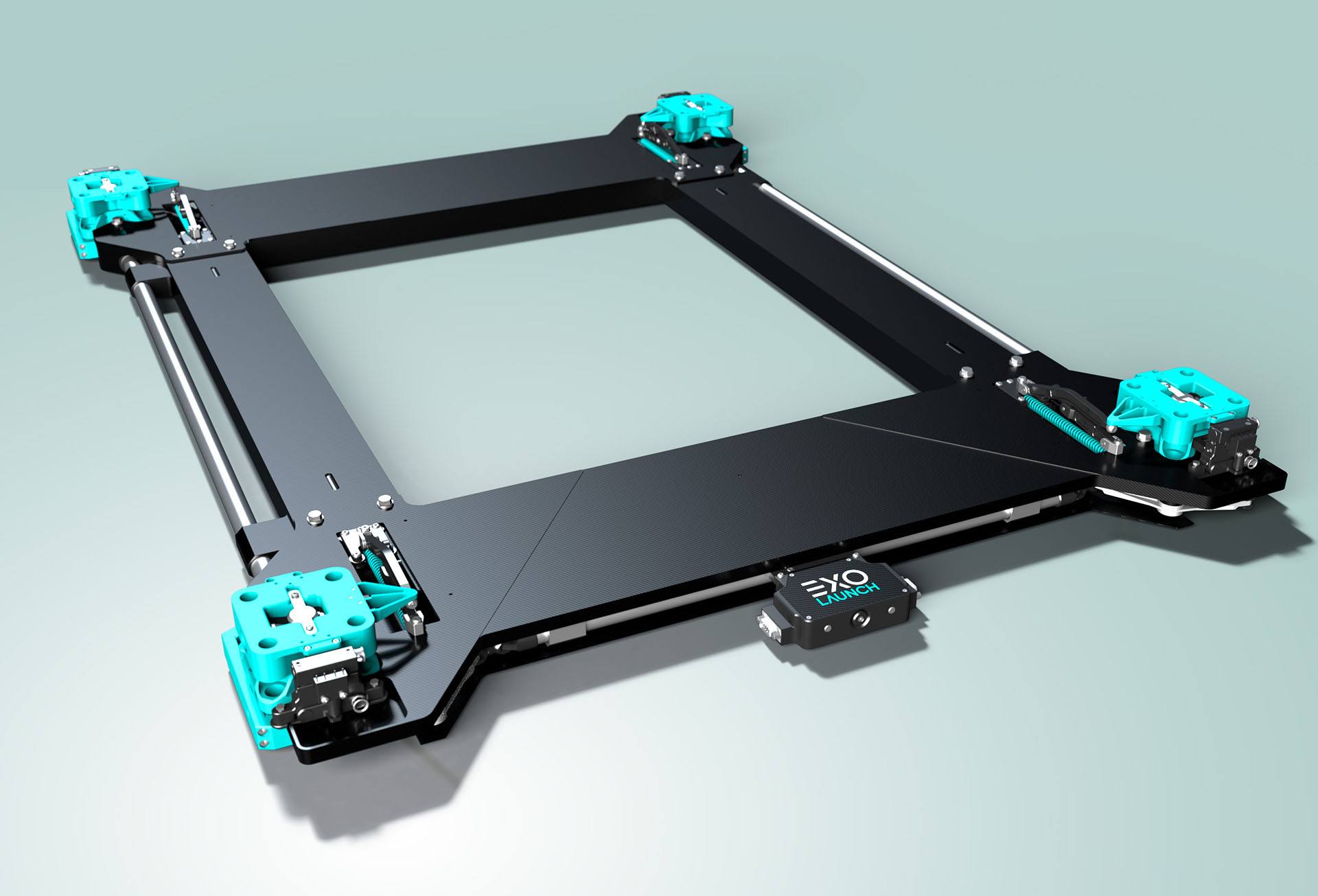

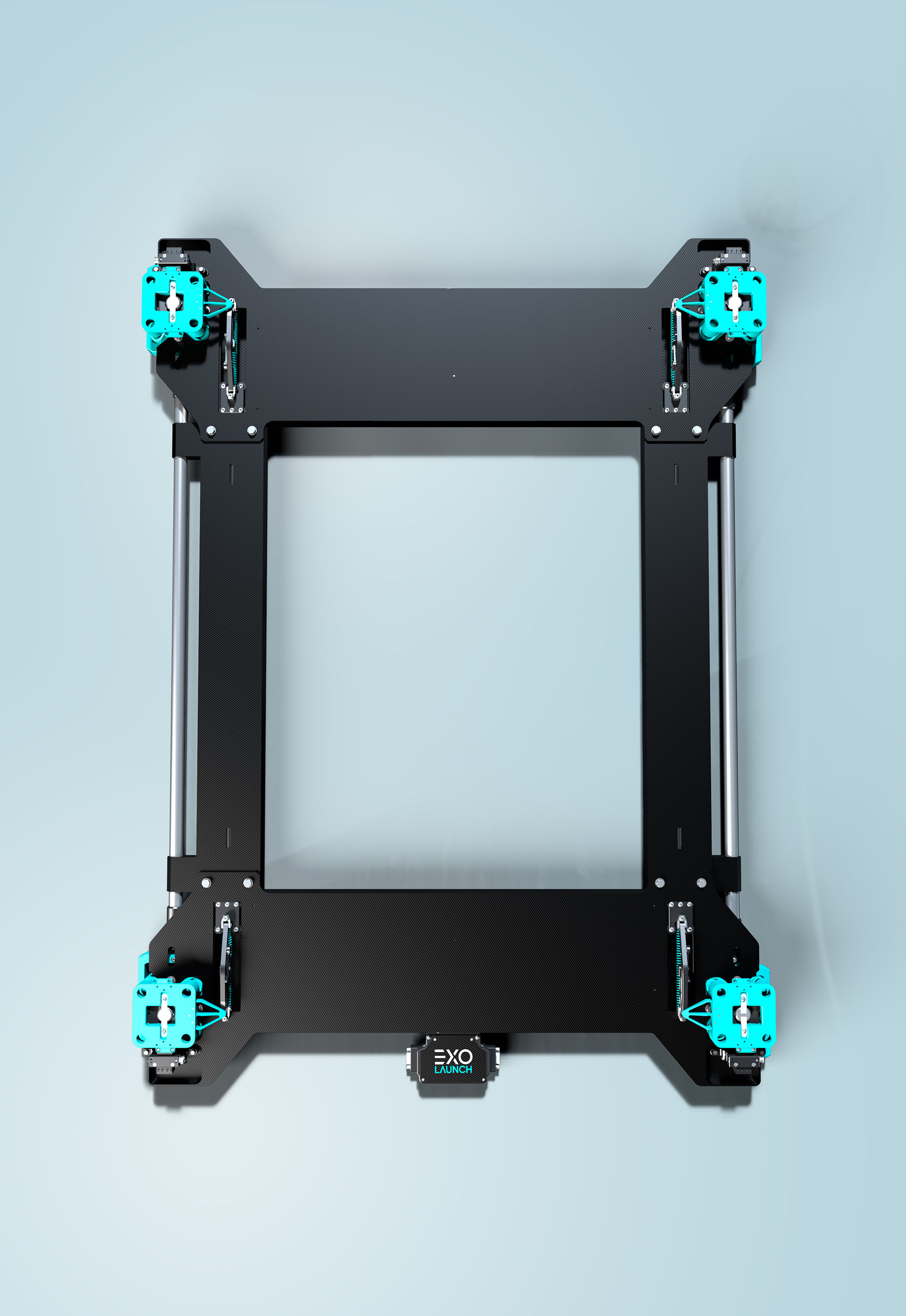

Quadro Versa In Action
